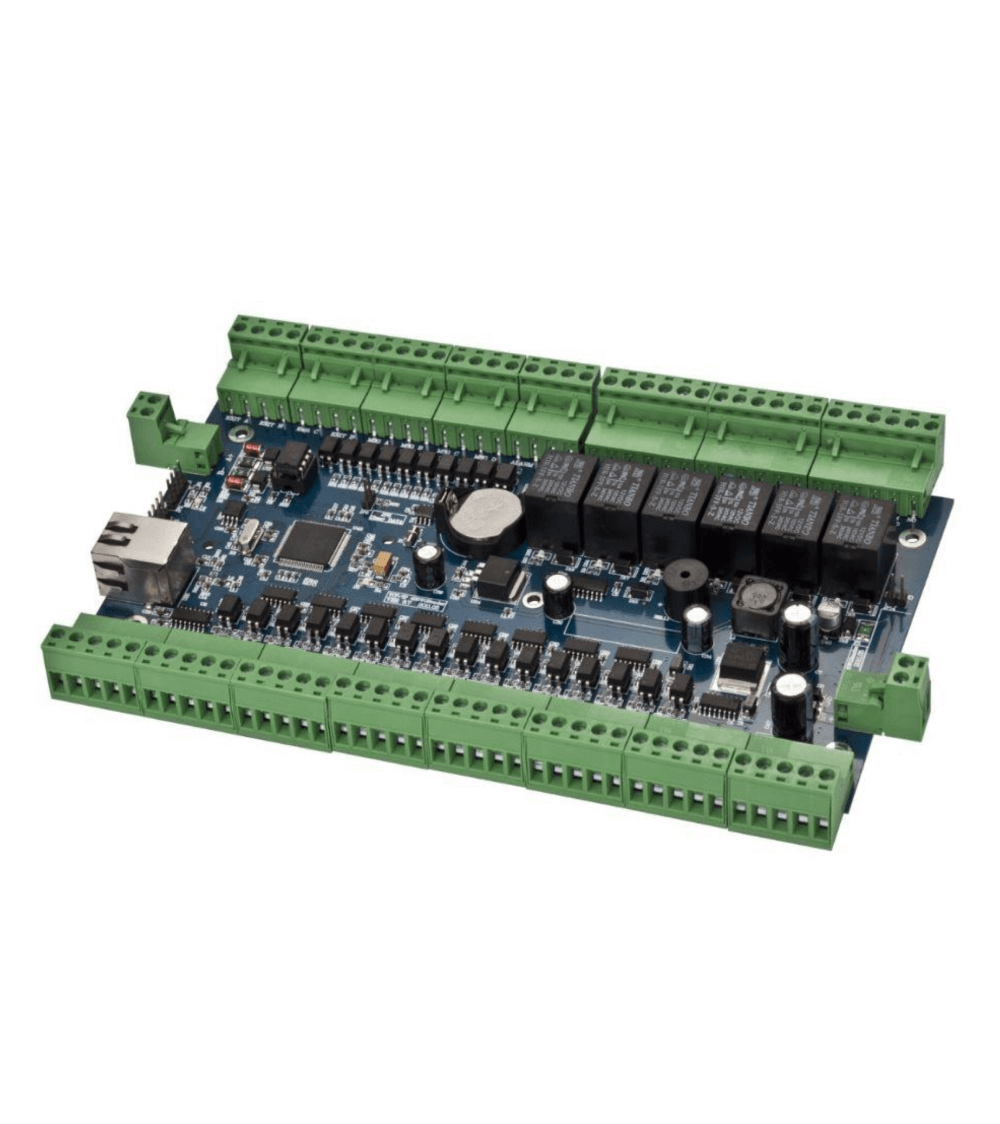

ESP-408A TCP/IP 4 Door Access Controller



  • Standard 485 (baute rate 9600)
  • Can connecting other multi door access controller to set up a network and manage in one software
  • Capacity: 30000 cards, 60,000 records, 1000 alarm records
  • Time zone: 16 groups, and can setting related multi door opening method like card, card + password, double card….
  • Support remote door opening, remote open or close fire alarm, alarm
  • Support many alarm events’ output, like invalid card, invalid time, door alarm, door opening time surpassing.
  • Support 4 wiegand card reader, automatically 26,34,37 protocal
  • Support 6 output to control door and alarm output together, and timing alarm output
  • Support multi door inter lock, and anti pass back function


Size 232mm×134mm×22mm
Weight 0.3kg
Temperature < 60℃
Humidity 10% ~ 95% R.H
Voltage & Current 10% ~ 95% R.H
Power ≤ 1W
Connecting device
Card reader 8 pcs
Alarm output & input 1 pcs each
Fire alarm output & input 1 pcs each
Release button 4 pcs
Door sensor input 4 pcs
Lock output 4 pcs
Function Parameter
Card capacity 30,000
Records 60,000
Alarm capacity 10,000
Communication 0TCP/IP, Webserver
Communication distance 800m
Card reading communication Wiegand or RS485, 100m
Door opening method Card, password, card & password, double bard, first card opening, software, fire alarm, release
button, timing door opening
