ESP-102C TCP/IP Single Door Access Controller

Description

Features:

  • Multiple hardware protection measure
  • There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
  • Integration with Other Security Systems
  • Supports different Wiegand reader
  • Input / Output Ports to Control Doors
  • Variety of Communication Function
  • Normal open after first punch card can be setup
  • Real-time Monitoring of Door status
  • Simple Access Control System Configuration
  • Interlock function
  • Multi-card operation
  • Anti-Passback
  • Duress Mode
  • SDK available

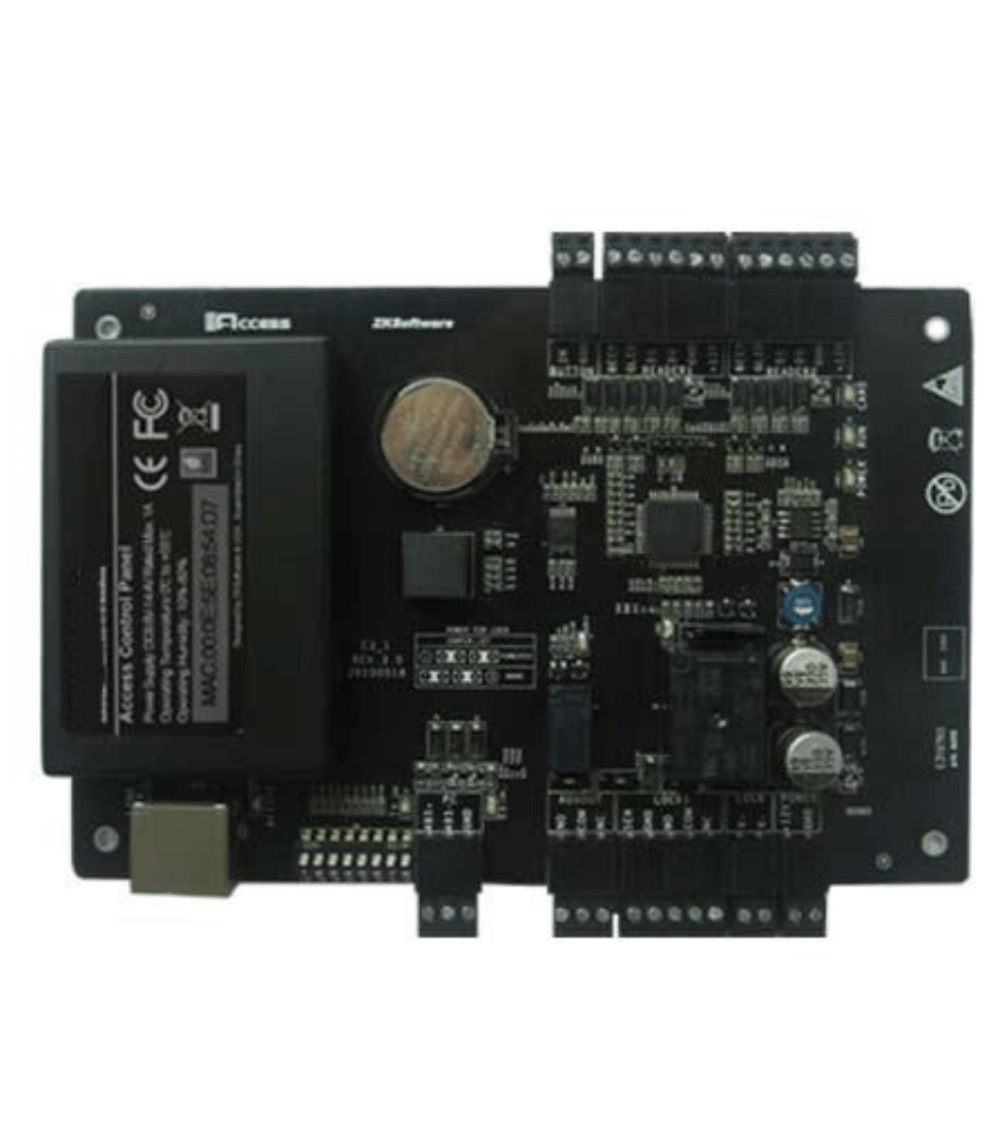

ENIGMA ESP-102C TCPIP SINGLE DOOR CONTROLLER

Parameter
Number of Doors Controlled 1
Number of Readers Supported 2
Types of Readers Supported 26-bit Wiegand, others upon request
Number of Inputs 2 (Exit Device and Door Status)
Number of Outputs 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
Card Holders Capacity 30,000
Log Events Capacity 100,000
Weight 7.4lbs (3.35kg)
Communication TCP/IP and RS-485
Recommended Power Supply 12V DC, 1.5A
Dimensions (Board Only) 6.3in.×4.17in. (160mm×106mm)
