TELEPHONE ENTRY & ACCESS CONTROL

Description

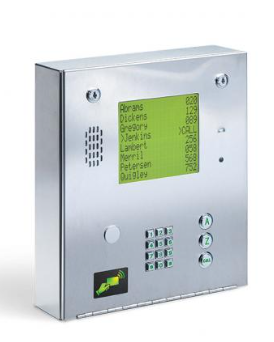

The 1837 80 Series stores up to 3000 phone numbers and 8000 device codes and can be expanded to control up to 48 wired access points with optional Tracker Expansion boards (up to 24 wirelessly). The 90 Series housing offers a streamlined look, has enhanced locking and weather sealing and provides easy internal instalation of optional components such as a card reader, LCD heater and TCP/IP adapter for a direct internet connection. The 1837 i still available in the original 80 Series (surface and flush mount) housings, click the button below to view the 80 Series product page.

t1
Cloud Programming!

With the DKS Cloud, program from your computer.
tablet and smartphone (subscription service required).
Or, use 3 PC with the Remote Account Manager
software (free download).

t2
Longer Life

With streamlined look, locking and double weather
sealing

t3
300 Names & Phone Numbers

Program multiple names and numbers per unit. – Use a
mobile phone number to receive calls for entry from
anywhere… and grant access.

t4
LCD Heaters (Optional)

for cold weather environments (sold separately).

t5
TCP?IP Adapter (Optional)

Can be mounted internally (TCP/IP adapter sold
separately).

t6
Elevator Control

Our elevator control module restricts which floors a
guest or system users have access to, making it an ideal
system for high rise buildings.

t7
Enhanced Temper Resistance

With dual locks and tamper alert switch. Optional hood
adds even more protection.

t8
8000 Device Codes

Multiple access control device choices – mix or match
card readers, keypads, and/or RF controls. – Program
multiple devices for each user. – Program multiple users
for each unit.

t9
High Resolution Color Camera

can be mounted internally (sold separately, may require
additional equipment).

t10
Card Reader (Optional)

Can be mounted internally (card reader sold
separately).

‘The Model 1837 is an ideal telephone entry and access control system suited for medium to large apartment and ‘gated community applications as well as office buildings and industrial sites. Each 1830 Series unit allows for a Voice and Data connection over Cellular, VoIP, Internet or a POTS (Plain 0d Telephone Service) connection. The eight-line LCD display features big 1/2-inch characters for easy viewing and your personalized message appears on the screen when the system is not in use. Our unique “One Touch” CALL button ‘makes this system one of the easiest to use on the market today! The built-in electronic directory, easy to use Remote Account Manager programming software, card reader interface and expandability options make this unit an ideal choice for those applications with a large number of system users and entry locations. With tracker expansion boards, up to 48 wired card readers (up to 24 wirelessly) can be interfaced with the 1837 to provide access control. ‘Additionally, our elevator control module restricts which floors a guest or system users have access to, making it an ideal system for high rise buildings. For additional security, the 1837 allows you to monitor activity AS IT HAPPENS on your computer display and with our anti-pass back memory, you can enable a TRUE anti-pass back system in one of three different configurations; passive, active and trap.

Features:
‘The 1837 Telephone Entry & Access Control System can be connected for voice and programming by any of these methods:
* Cellular 4G-LTE service (note 1)
* VoIP (note 2)
« POTS – Plain Old Telephone Service (note 3)

Note 1: Requires DKS Cellular subscription and 1800-080 cellular adapter. 4G-LTE service provided by AT&T where available.
Note 2 Requires 1830-185 (manual setup) or 1830-186 (automatic setup) TCP/IP Adapter for internet connection. 1830-186
requires IM SERVER Client subscription. VoIP requires 1815-568 VoIP adapter and subscription, or use your own provider
subscription & hardware.

Note 3: Programming and voice via the telephone line and modem and phone connection at your PC, or program via your
existing internet connection – using IM Server Modem (subscription required). DoorKing does not recommend using a POTS
line for programming the telephone entry system. DoorKing can no longer guarantee programming via POTS / modem as
‘many phone company services and switches no longer support modem communications as these devices are considered to
be obsolete.

Go to Connection Options for further details.
« Large easy to use A and Z scroll buttons.
« One Touch “CALL” button.
« Built-in eight ine LCD directory display.
« Programmable directory codes (1-4 digits).
« 10and 11-digit dialing capability.
« Interfaces with 2 card readers – expandable to 48 with wired tracker expansion boards (or 24 wirelessly).
« Live Streaming.
« Live transactions.
« Anti-pass back.
«8000 event transaction buffer.
« Elevator control – requires elevator control boards(s)
«31 Security (permission) Levels – 29 Programmable (2 fixed levels).
« Database import/export capability.
« Built-in clock/calendar.
« Holiday schedule.
« Hold open time zones.
« Entry code time zones.
« Built-in postal lock provision.

Spacifications:
« True Full Duplex communication.
« Stores up to 3000 telephone numbers and names (names are limited to 15 characters max).
« Transaction buffer stores last 8000 events.
« Stores up to 8000 device (card) codes.
« 31 Security (permission) Levels, 29 programmable with 4 time zones each.
« 8hold open time zones.
« Three anti-pass back configurations: passive, active and trap.
« Elevator control (note 17)for up to 8 elevators, each serving 64 floors.
« Expandable (note 2)to control up to 48 wired entry points (or 24 wirelessly).
« 4digit entry codes, one for each telephone number.
« 3form “C” dry contact relays.
« Eightline directory display uses super-twist LCD with 1/2-inch characters.
« EEPROM memory chip.
« 16 VAC, 20 VA and 16 VAC, 50 VA power transformers supplied.
« FCC (US): DUF6VT-12874-0T-T
« DOC (CAN): 1736 4528 A
« Compliant with UL 294. ETL listed.

Dimensions 1837-90 Series
* 1475″ (375 mm) H x 12.75″ (324 mm) W x 3.75″ (95 mm) D.

Note 7: Requires Elevator Control Board(s).
Note 2: Requires Tracker Expansion Board(s).

Styles and Optional Housing

image 255
standard Housing –
Surface Mounted
image 267
Flush Mounted (flush
‘mount kit sold
separately). PIN
1814-200
image 268
Surface Mounted
with Hood (hood sold
separately). P/N
1814-185
image 269
Post shown with
hood sold separately
P/N PIN 1814-180
