USER-FRIENDLY INTEGRATED TELEPHONE DESIGN FEATURES
Description

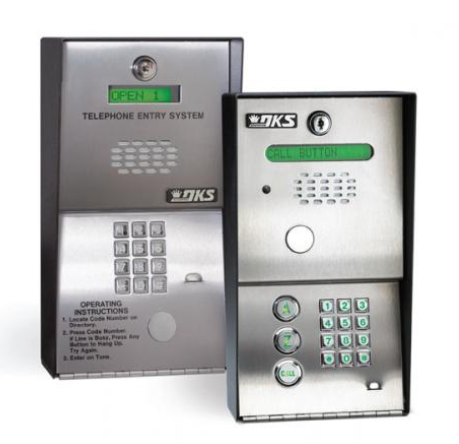

The DKS 1802 Series are an ideal Telephone Entry System that is suited for applications that have limited space and can be used in residential as well as commercial applications. Visitors are easily identified by voice communication and can be granted or denied access directly from a touch-tone telephone.
The 1802 Standard is best suited for applications that do not require a directory, or in applications where a separate directory exists. The DKS 1802-EPD with built-in Electronic Programmable Directory eliminates the need for external or add-on directories.
1802 Standard
600 phone number memory. Single-line programming display uses super-twist LCD with 5/16-inch (7.9 mm) characters. Indicates door gate has been opened.
1802-EPD
100 name and number memory capacity. Built-in AZ scroll buttons and CALL button. Single-line electronic directory uses super-twist LCD with 5/16-inch (7.9 mm) characters.
Features
DoorKing’s 1802 and 1802-EPD (Electronic Programmable Directory) are ideal telephone entry systems that are loaded with
features and are suited for applications that have limited space and can be used in residential as well as commercial
applications. The 1802 is designed for applications that do not require a directory, or in applications where a separate
directory exist, while the 1802-EPD includes a built-in electronic directory. Visitors are easily identified by voice
communication and can be granted or denied access directly from a touch-tone telephone. Please note that the 1802-111
post mount kit is required if the 1802 will be post mounted.
Use the simple and easy plug-and-play DKS Cellular option for voice only connection to the 1802 systems. No phone lines or
internet cables to run – no trenching or conduits to install. And, of course, DKS telephone entry systems are all compatible
with the traditional POTS copper wire.
Delivery Contents
Features:
- Programmable directory codes (1-4 digits).
- 16-digit dialing
- Two special inputs can be programmed for relay activation or to dial out a preprogrammed phone number.
- sdigit entry codes for special needs.
- LED lighting illuminates keypad.
- Built-in time clock.
- Hold open time zones.
- Entry code time zones.
- Flash” entry codes.
- Built-in postal lock provision.
- 1802 includes programming display.
Shipping
Returns
Technical Downloads
Specifications:
1802 stores up to 600 telephone numbers.
1802-EPD stores up to 100 telephone numbers and names.
EEPROM Memory Chip.
Full duplex communication.
4-digit entry codes; 1802 max. of 1000; 1802-EPD max. of 100.
six, 5-digit entry codes.
16 VAC, 20 VA (250 ma) power transformer provided.
Ringer equivalence: 0.0 A.
Jack type: RJ11C or W.
FCC (US): DUF6VT-12874-0T-0
DOC (CAN): 1736 4507 A
Complies with UL 294; ETL Listed.
Surface mount dimensions: 12H x 6.5″W x 5″D.
Flush mount dimensions: 14″H x 8.375″W x 3.25’D.
Options:
Surface or flush mount – specify which.
1802-111 Post mount kit required for post mounting.
1802 Surface Mount.
P/N 1802-082
1802 Flash Mount.
P/N 1802-082
1802-EPD Surface
Mount. P/N 1802-090
P/N 1802-082
1802-EPD Flush
Mount. P/N 1802-091
