LCD Counter Display

LCD Counter Display


The Unique Features:

  • Web-based – UI design fully managed by web-based CMS dashboard.
  • Responsive – instantaneous response to calling of queue number
  • User-friendly – easy, customize & reliable.
  • Flexibility – VESA mounting for quick installation.
  • Real-time – instantaneous queue data analysis revealing queueing condition.
  • Connectivity – option for POE / LAN / WIFI connectivity allows easy deployment.
  • Multi-lingual – multiple languages interface & design.
  • Customization – show customize info such as user picture & profile, schedule, etc.
Model QB-CD10 10-inch LCD Counter Display QB-CD14 14-inch LCD Counter Display
Processor Dual Core 1.5Ghz Quad Core 1.6Ghz
Resolution Pixel 1280 (W) x 800 (H) 1920 (W) x 1080 (H)
Memory 1GB
Network RJ45 LAN 100Mpbs / POE
Brightness 250cd/m2 300cd/m2
Power Consumption 10W 15W
Built in Speaker Yes
BVESA 75mm x 75mm
Dimension (W*H*D) 260mm x 178mm x 25mm 220mm x 350mm x 30mm

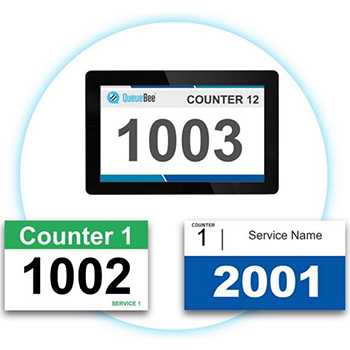

Guides the customer with dedicated counter screen comprises of queue number & media info.
