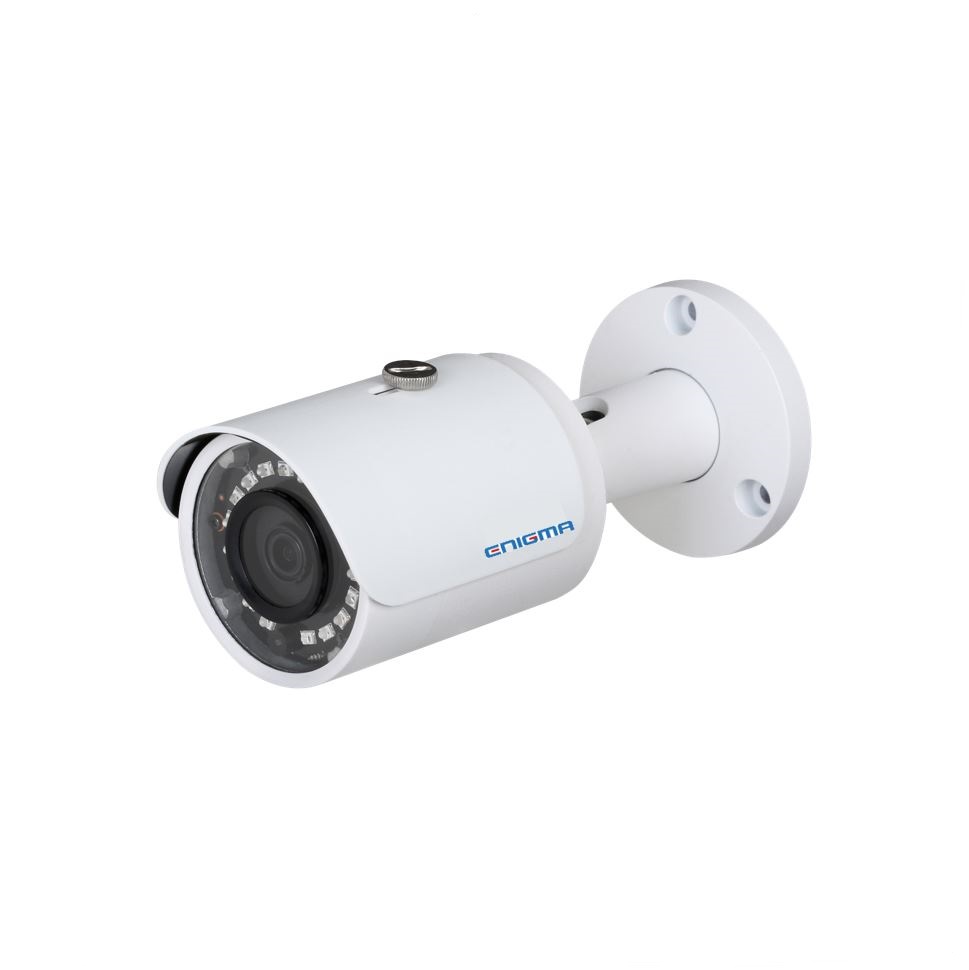

HDCVI Bullet CCTV Camera

HDCVI Bullet CCTV Camera

  • Max 30fps @ 720P / 1080P / 4MP
  • HD and SD output switchable
  • 3.6mm, 2.8mm, 6mm fixed lens
  • Max. IR length 30m, Smart IR
  • IP67, DC12V
Specifications
CAMERA
Effective Pixels1280(H)×720(V), 1MP

1920(H)×1080(V), 2MP

2560(H)×1440(V), 4MP

IR DistanceUp to 30m (98feet)
IR On/Off ControlAuto / Manual
IR LEDs18
LENS
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (2.8mm, 6mm Optional)
Angle of View (H)1MP: 72.3° (91.6°/46°)

2MP: 87.5° (103°, 54.7°)

4MP: 76.4° (97.0°/48.6°)

Focus ControlN/A
VIDEO
Resolution720P (1280×720)

1080P (1920×1080)

4MP (2560×1440)

Frame Rate1MP: 25/30fps@720P

2MP: 25/30fps@1080P, 25/30/50/60fps@720P

4MP: 25/30fps@4MP, 25/30fps@1080P

ELECTRICAL
Power Supply1MP: 12V DC ±25%

2MP: 12V DC ±30%

4MP: 12V DC ±30%

Power Consumption1MP: Max 3.8W

2MP: Max 4.3W

4MP: Max 4.9W

ENVIRONMENTAL
Operating Conditions-40°C ~ +60°C
Ingress Protection & Vandal ResistanceIP67
CONSTRUCTION
CasingAluminium
Dimensions164.7mm×70mm×71.6mm (6.48″×2.76″×2.82″)
Net Weight0.35 – 0.38kg
Gross Weight0.44 – 0.47kg

Description

1MP/2MP/4MP HDCVI IR Bullet CCTV Camera
