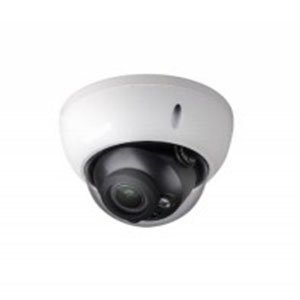

ESP -1320 3MB Dome Network Camera

ESP -1320 3MB Dome Network Camera

VIEW PDF

Features

  • 1/3” 3Megapixel progressive CMOS
  • H.264+ & H.264 dual-stream encoding
  • 20fps@3M(2048×1536)&25/30fps@1080P(1920×1080)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8 mm fixed lens
  • Max IR LEDs Length 30m
  •  IP67, IK10, PoE
Specifications
Image Sensor1/3” 3Megapixel progresive CMOS
Effective Pixels2304(H) x 1536(V)
RAM/ROM256MB / 16MB
IR DistanceDistance up to 30m (98ft)
IR On/Off ControAuto/Manual
IR LEDs24
Lens TypeFixed
Focal Length2.8 mm
Angle of ViewH: 98°/77° V: 51°/41°
Focus ControlFixed
Close Focus DistanceN/A
Edge StorageNAS(Network Attached Storage),
Local PC for instant recording
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Video CompressionH.264+/H.264
ProtocolHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP;
DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP;
Bonjour; 802.1x; Multicast; ICMP; IGMP
Network EthernetRJ-45 (10/100Base-T)
Resolution3M(2048×1536)(2304×1296) 1080P(1920×1080) 1.3M(1280×960)
720P(1280×720) D1(704×576/704×480) CIF(352×288/352×240)
Frame Rate3M(1 ~ 20fps)
2M (1 ~ 25/30fps)s)
D1/CIF(1 ~ 25/30fps)
Day/NightAuto(ICR) / Color / B/W
Motion DetectionOff / On (4 Zone, Rectangle)
Smart IRSupport
Audio CompressionN/A
Power SupplyDC12V PoE (802.3af)(Class 0)
Power Consumption<5.0W
Ingress ProtectionIP67
Vandal ResistanceIK10
CasingMetal
DimensionsΦ109.9mm × 81mm (4.33″ x 3.19″)
Gross Weight0.47Kg (1.04lb)

Description

Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.8 mm fixed lens
