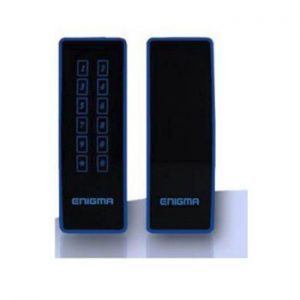

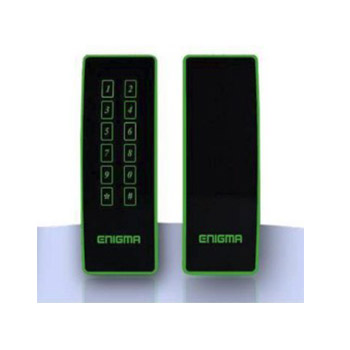

ESP L209M Mifare Card Reader

ESP L209M Mifare Card Reader

VIEW PDF

Features:

  • Number pad use “touching sensor”, the latest technology and individual number backlit when touch
  • Support on-site Reader Configuration Card to change certain parameters
  • A PIN can be set inside the card to authenticate with the reader so that “Card +PIN” mode can be implemented without relying on the controller
  • Economic mullion mounts reader
  • Design with OEM logo is available
  • Door Bell function for Number pad reader
  • Tamper protection
  • Easily see under dark environment. Could be use as a door location indicator during emergency
ModelESP-L209EESP-L209EK
Configurable Functions
Re-configure WindowConfigurable
Reader Output FormatConfigurable
Wiegand Plus WidthDifferent choices
Keypad OutputN/ADefinable
Buzzer ControlReader & Controller control (Default) or Controller control only
LED/Back LitDefine different LED color response base on Green LED
DisplayNoOLED
Clock DisplayNoYes
Typical Read Range> 5cm
Reader Standard OutputWiegand (RS232 & RS485 is an option)
Standard Keypad OutputN/AWiegand with 4 bits burst
Wiring Distance150m (22 AWG with shielded cable)
Frequency & Standard125KHz
Operating Specification
Operating Voltage10 – 15VDC
Operating Current150mA (max)
Operating Temperature-30°C – 70°C
Operating Humidity10% – 90%
Case materialPC + ABS
Standard ColorBlack
Exterior Dimension143*46*25 mm
Weight180g

Description

Easily see under dark environment. Could be use as a door location indicator
during emergency
