Description
Card type: 125KHz EM card,125KHz HID card, and 13.56Mhz Mifare Card

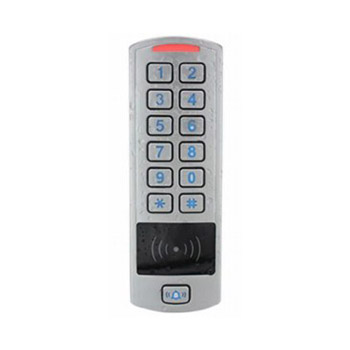

ESP 6KX Card Reader
ESP 6KX Card Reader
VIEW PDFProduct Features
- Waterproof, conforms to IP66
- One relay, 600 users
- Card type: 125KHz EM card,125KHz HID card, and 13.56Mhz Mifare Card
- PIN length: 4~6 digits
- Wiegand 26~37 bits input & output
- Can be used as Wiegand reader with LED & Buzzer output
- Pulse mode, Toggle mode
- 2 devices can be interlocked for 2 doors
- 12~28V AC/ DC
| Features | |
|---|---|
| User Capacity | 600 |
| Operating Voltage | 12~28V AC/DC |
| Current | < 65mA (Idle Current), < 100mA (Active Current) |
| Radio Technology | 125kHz & 13.56Mhz |
| Read Range | 2~6 cm |
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output |
| Relay | One (NO, NC, Common) |
| Wiegand Interface | Wiegand 26~37bits |
| Environment | IP66 |
| Operating Humidity | 0% ~ 90%RH |
| Operating Temperature | -40 ̊C ~ 60 ̊C |
| Physical | Zinc-Alloy Enclosure |
| Size | 150(L)*51(W)*23(H)mm |
