Description
One software can connect to several ESP-C806 to share the user info and get the attendance records.

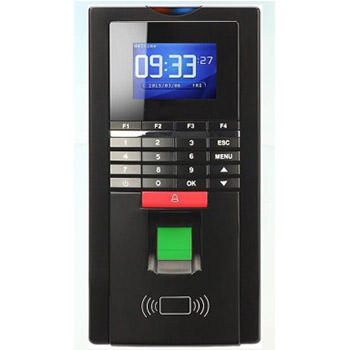

ESP C806 Biometric Fingerprint Access Control Terminal
ESP C806 Biometric Fingerprint Access Control Terminal
VIEW PDFOne software can connect to several ESP-C806 to share the user info and get the
attendance records.
| Features | |
|---|---|
| Max User Capacity | 2,000 |
| Fingerprint Capacity | 2,000 |
| Transaction Capacity | 100,000 |
| Push Technology (UDP) | Device Pushes real-time attendance record to the RAMS Software automatically, including the offline records. |
| Display | 2.4inch TFT Screen |
| Fingerprint Sensor | 500DPI (Optical) |
| Communication | TCP/IP, RS485, USB Memory Disk |
| Authentication Method | Fingerprint/ RFID Card (125Khz)/Password |
| Bell | Built-in Timing Bell (Scheduled-bell, can connect to external timing bell) |
| Access Control Interface | Wiegand26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor |
| Professional access function | Open door by multilevel verification, anti-pass back |
| Optional functions | Add to 3,000 templates, MIFARE CARD function |
| Power Supply | DC 12V/1A |
| Operating environment | Operating Temp: 0°C-50°C, Humidity:80% |
| Terminal Size | 181(L)*91(W)*36(H)mm |
