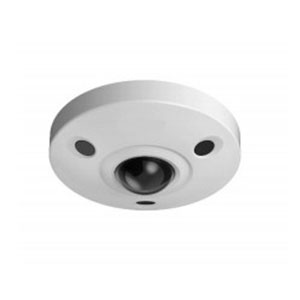

ESP -8630 6MP Panoramic Network IR Fisheye Camera

ESP -8630 6MP Panoramic Network IR Fisheye Camera

VIEW PDF

Features

  • 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS
  • H.265/H.264 triple-stream encoding
  • Max 25/30fps@6M(3072×2048)
  • Multiple dewarped Mode
  • Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Smart detection
  • Intelligent Function
  • Max. IR LEDs length 10m
  • Micro SD memory, IP67, IK10, PoE
Specifications
Image Sensor1/1.8” 6Megapixel progressive scan CMOS
Effective Pixels3072(H) x 2048(V)
RAM/ROM1024MB / 128MB
IR DistanceDistance up to 10m (33ft)
IR On/Off ControAuto/Manual
IR LEDs3
Lens TypeFixed
Focal Length1.7 mm
Angle of ViewH: 180° V: 180°
Focus ControlFixed
Close Focus DistanceN/A
Edge StorageNAS(Network Attached Storage), Local PC
for instant recording, Micro SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Video CompressionH.265/H.264
ProtocolHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;
NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP
Network EthernetRJ-45 (100/1000Base-T)
Resolution6M(3072×2048)/ 4M(2048×2048)/ 3M(2048×1536)/ UXGA(1600×1200)/
1.3M(1280×960)/ D1(704×576/704×480)/ CIF(352×288/352×240)
Frame RateMain Stream: 6M(1~25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Third Stream: 1.3M(1 ~ 25/30fps)
Day/NightAuto(ICR) / Color / B/W
Motion DetectionOff / On (4 Zone, Rectangle)
Smart IRSupport
Audio CompressionG.711a/G.711Mu/AAC/ G.726
Power SupplyDC12V PoE (802.3af)(Class 0)
Power Consumption<12W
Ingress ProtectionIP67
Vandal ResistanceIK10
CasingMetal
DimensionsΦ149.8mm×50.7mm(Φ5.9”×2”)
Gross Weight1.0Kg (2.2lb)

Description

Day/Night(ICR), 3DNR, AWB, AGC, BLC Smart detection Intelligent Function
