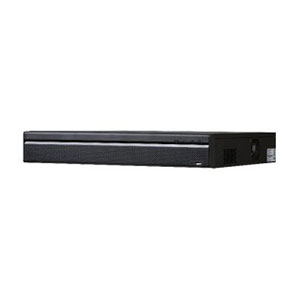

ESP -5464 64 Channel 1.5U Network Video Recorder

ESP -5464 64 Channel 1.5U Network Video Recorder

VIEW PDF

Features

  • Smart H.265+/H.265/Smart
  • H.264+/H.264/MJPEG
  • Max 320Mbps Incoming Bandwidth
  • Up to 12MP Resolution for Preview and
  • Playback
  • 2HDMI/2VGA simultaneous video output
Specifications
Main ProcessorQuad-core embedded processor
Operating SystemEmbedded LINUX
IP Camera Input64 Channel
Two-way Talk1 Channel Input, 2 Channel Output,
RCA
Display Interface2 HDMI, 2 VGA
ResolutionHDMI 1: 3840×2160, 1920×1080,
1280×1024, 1280×720, 1024×768
VGA 1: 1920×1080, 1280×1024,
1280×720, 1024×768
HDMI 2 / VGA 2: 1920×1080
Decoding Capability4-ch @ 8MP(30fps), 16-ch @ 1080P(30fps)
Multi-screen Display1st Screen 16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36 64CH: 1/4/8/9/16/25/36/64
2nd Screen 1/4/8/9/16
OSDCamera title, Time, Camera lock,
Motion detection, Recording
Focus ControlFixed
Recording CompressionSmart H.265+/H.265/Smart H.264+/H.264/MJPEG
Recording Resolution12MP, 8MP, 6MP, 5MP, 4MP, 3MP,
1080P, 1.3MP, 720P, D1 etc.
Bit Rate16Kbps ~ 20Mbps Per Channel
Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push,
Email, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396
(22 × 18), Video Loss and Tampering
Alarm Input16 Channel
Relay Output6 Channel
Sync Playback1/4/9/16
Search ModeTime /Date, Alarm, MD and Exact
Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File,
Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network/eSATA Device
Network Interface2 RJ-45 Ports (10/100/1000Mbps)
Independent or Joint Working
PoEN/A
Max. User Access128 users
Internal HDD4 SATA III Ports, Up to 10 TB capacity for each HDD
eSATA1 eSATA
USB3 USB Ports (2 Rear USB 3.0 , 1 Front USB 2.0 )
Power SupplySingle, AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption<16.7W (without HDD)
Dimensions1.5U, 440mm x 411.2mm x 76mm (17.3″ x 16.2″ x 3.0″)
Net Weight4.3kg (9.5 lb) (without HDD)

Description

Max 320Mbps Incoming Bandwidth Up to 12MP Resolution for Preview and Playback
