Description
Powerful 12x optical zoom Support Triple-streams encoding Max. 25/30fps@1080P

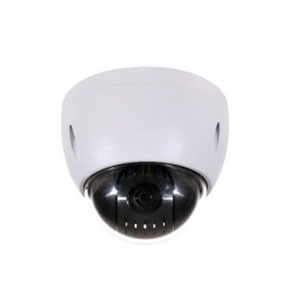

ESP -42 2MP 12x Starlight PTZ Network Camera
ESP -42 2MP 12x Starlight PTZ Network Camera
VIEW PDFFeatures
- 1/2.8” 2Megapixel STARVIS™ CMOS
- Powerful 12x optical zoom
- Support Triple-streams encoding
- Max. 25/30fps@1080P
- IVS
- Support PoE+
- IP66, IK10
| Specifications | ||
|---|---|---|
| Image Sensor | 1/2.8” STARVIS™ CMOS | |
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels | |
| RAM/ROM | 1024M / 128M | |
| IR Distance | N/A | |
| IR On/Off Contro | N/A | |
| IR LEDs | N/A | |
| Optical Zoom | 12x | |
| Focal Length | 5.3mm ~ 64mm | |
| Angle of View | H: 58.2° ~ 4.8° | |
| Focus Control | Auto/Manual | |
| Close Focus Distance | 100mm ~ 1000mm | |
| Edge Storage | NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 256GB | |
| Web Viewer | IE, Chrome, Firefox, Safari | |
| Smart Phone | IOS, Android | |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 | |
| Network Ethernet | RJ-45 (10XBase-T / 100Base-TX) | |
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Video Digital Zoom | 16x | |
| Privacy Masking | Up to 24 areas | |
| Video Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240) | |
| Frame Rate | Main stream: 1080P/720P (1 ~ 25/30fps) Sub stream1: D1/CIF (1 ~ 25/30fps) Sub stream2: 720P/D1/CIF (1 ~ 25/30fps) | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Motion Detection | Support | |
| Smart IR | N/A | |
| Audio Compression | G.711a / G.711Mu / G.726 / AAC | |
| Power Supply | AC 24V/1.5A(±10%), PoE+(802.3at) | |
| Power Consumption | 12W | |
| Ingress Protection | IP66 | |
| Vandal Resistance | IK10 | |
| Casing | Metal | |
| Dimensions | Φ170(mm) x 155(mm) | |
| Gross Weight | 3.3kg (7.28lb) | |
