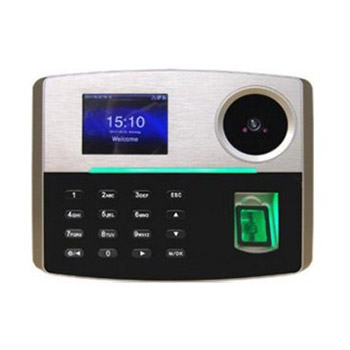

ESP 810 Palm & Fingerprint Time Attendance and Access Control System

ESP 810 Palm & Fingerprint Time Attendance and Access Control System

VIEW PDF

  • 600 Palms, 3000 Fingerprints, 10000 ID cards and 100000 records.
  • Latest BioID Anti fake fingerprint sensor.
  • Advanced access function including lock connection, alarm, Wiegand input and output.
  • Built-in Li-battery 3.7V 4000mAh.
  • Multiple communication of TCP/IP, USB Optional WiFi and 3G (WCDMA)
  • Can work with PC software and WEB software.
Features
Fingerprint reader BioID fingerprint sensor
Display LCD display; 2.8″ TFT color screen
Speaker Voice prompt (language can be selected)
Capacity

Fingerprint capacity: 3,000

Palm capacity: 600

Log capacity: 100,000

Verification

Verification speed (1:1): ≤ 0.5s

Identification speed (1:N): ≤ 1s

Communication

TCP/IP, USB host, RS485, Wiegand in/out

WiFi, 3G (optional)

Attendance status Check in/out, Break in/out, Overtime in/out
Access control Built-in relay, EM lock, door sensor, exit button, etc
Alarm Dismantlement alarm, break-in alarm, duress alarm
Power supply

110/220V AC-12V/3A

Built-in Li-battery 3.7V 4000mAh

Language Multi language, English, French, Spanish, Arabic, etc
Environment

Operation temperature: 0 ̊C – 45 ̊C

Operation humidity: 20% ~ 80%

Functions support

Workcode, DST, Auto-status, T9 input, 9 PIN user ID, Webserver, Scheduled-bell, SMS, Self-

service query, Photo ID, RS232 printer, Anti-passback

Customize function ID/ Mifare/ HID card reader, WiFi, 3G, PoE, ADMS, External siren
Machine size 200*153*44mm

Description

Multiple communication of TCP/IP, USB Optional WiFi and 3G (WCDMA)
