Description
Programmable Keypad Transmission: 4 bits,8bits or virtual
card number format

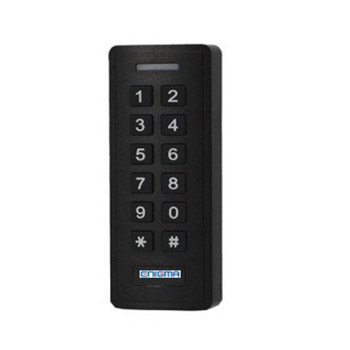

ESP 2KX Card Reader
ESP 2KX Card Reader
VIEW PDFProduct Features
- Waterproof, conforms to IP66
- Wiegand 26~37 bits output (default: 26bits)
- Programmable Keypad Transmission: 4 bits,8bits or virtual card number format
- Card type: Hid card, EM card & Mifare card
- Reading range: 3~8cm
- External LED Control & External Buzzer Control
| Features | |
|---|---|
| Operating Voltage | 9~24V DC |
| Frequency | 125KHz & 13.56MHz |
| Card Type | 125KHz – EM & Hid Card 13.56MHz – Mifare Card (ISO 14443A Compatible) |
| Keypad Transmission | 4 bits (factory default), 8 bits or virtual card number format can be set |
| Reading Distance | 7 cm |
| Output Format | Wiegand 26~37 bits |
| Operating Temperature | -40 ̊C ~ 60 ̊C (-40 ̊F ~ 140 ̊F) |
| Standby Current | < 25mA |
| Operating Humidity | 10%~95% RH |
| Index of Protection | IP66 |
| Dimensions | -40 ̊C ~ 60 ̊C |
