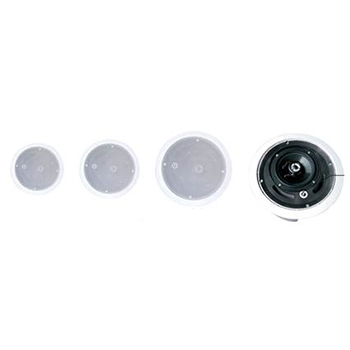

Voltage & Impedance Adjustable Ceiling Speaker Series

Voltage & Impedance Adjustable Ceiling Speaker Series

VIEW PDF

Features:

  • Two frequency superior quality water-proof ceiling speaker.
  • Wide frequency response.
  • LRC low frequency is better as it has the back box.
  • Carbon fiber water-proof cone for woofer
  • Imported silk silver treble film
  • Sound quality is delicate and powerful.
  • The grille can easily be attached to the speaker by means of coil springs.
  • Widely used in supermarkets, hotels, subways and so on.
  • The Dustproof Level : IP 4X

Specification

Model AT-2042 AT-2053 AT-2064
Rated Power 15W 25W 30W
Input Model 70V/100V/8Ω
Sensitivity 92dB±2dB 91dB±2dB 92dB±2dB
Frequency Response 80Hz-20KHz 70Hz-20KHz 55Hz-20KHz
Material ABS+ Iron Net
Speaker Unit 4” x 1; 1.5”x1 5” x 1; 1.5” x 1 6.5” x 1; 1.5” x 1
Mounting Hole Φ180-185mm Φ210-215mm Φ250-255mm
Panel Size Φ213 x 160mm Φ240 x 155mm Φ280 x 195mm
Weight 1.6kg 2.0kg 2.9kg

Description

The grille can easily be attached to the speaker by means of coil springs.
