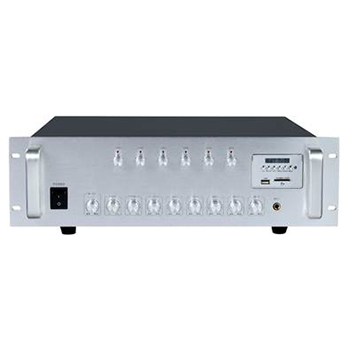

6zones Separately Control Volume With Bluetooth Mixing Amplifier

6zones Separately Control Volume With Bluetooth Mixing Amplifier

VIEW PDF

Features:

  • 3 AUX inputs, 3 MIC inputs(MIC 1 has Mute function for emergency input), 1 AUX output
  • 6 zones with separately volume control.
  • Decoder module supports USB / SD Card / MMC Card
  • File format: MP3/WMA/WAV * Multiple play mode: repeat; play/pause; previous/next; vol+/vol-;EQU(equalizer)
  • With FM function
  • Master Volume control, Treble and bass control, Remote control.
  • Cooling fan and heat sink for over-heat protection, Short-circuit/Sound-light Alarm Warning
  • 3U rack mount design, aluminium material, fashion appearance.

Specification

Model CA-3450E CA-3550E CA-3650E
Rated Power 450W 550W 650W
Output Model 70V 100V 4-16Ω
Input Sensitivity 500mv
S/n Radio > 85db
Tone Bass: 100Hz±10dB, Treble: 10KHz±10dB
Frequency Response 80Hz~~15KHz±3db
Harmonic Distortion <0.1% at 1KHz, 1/3 rated power
Power AC 220V~~240V/50Hz~60Hz
Dimension(mm) 485*480*132mm

Description

File format: MP3/WMA/WAV * Multiple play mode: repeat; play/pause; previous/next; vol+/vol-;EQU(equalizer)
