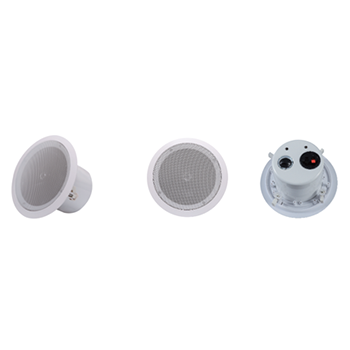

Power Adjustable Ceiling Speaker Series

Power Adjustable Ceiling Speaker Series

VIEW PDF

Features:

  • Two frequency superior quality ceiling speaker.
  • With iron-made back box that prevents the fire and mouse.
  • Wide frequency response.
  • Carbon fiber water-proof cone for woofer.
  • Imported silk silver treble film
  • Sound quality is delicate and powerful.
  • The grille can easily be attached to the speaker by means of coil springs.
  • Widely used in supermarkets, hotels, subways and so on.
  • The Dustproof Level : IP 4X

Specification

Model T-505V T-605V T-805V
Rated Power 25W/20W/10W/5W 30W/20W/10W/5W 40W/20W/10W/5W
Input Model 70V-100V
Sensitivity 90dB±2dB 91dB±2dB 92dB±2dB
Frequency Response 80Hz-18KHz 110Hz-16KHz 110-16KHz
Material ABS + Iron net + Iron bucket
Speaker Unit 5” x 1; 1.5”x1 6.5” x 1; 1.5” x 1 8” x 1; 1.5” x 1
Mounting Hole Φ180-185mm Φ205-210mm Φ245-250mm
Panel Size Φ212 x 150 mm Φ240 x 160 mm Φ280 x 185mm
Weight 1.7kg 2.38kg 2.84kg

Description

The grille can easily be attached to the speaker by means of coil springs.
