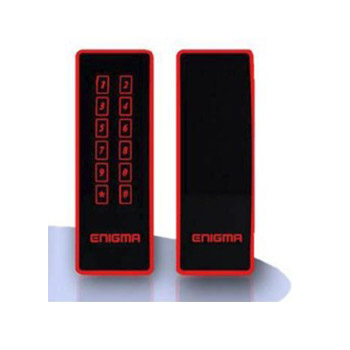

ESP L209E EM Card Reader

ESP L209E EM Card Reader



  • Number pad use “touching sensor”, the latest technology and individual number backlit when touch
  • Support on-site Reader Configuration Card to change certain parameters
  • A PIN can be set inside the card to authenticate with the reader so that “Card + PIN” mode can be implemented without relying on the controller
  • Economic mullion mounts reader
  • Tamper protection
  • Easily see under dark environment. Could be use as a door location indicator during emergency
Model ESP-L209E ESP-L209EK
Configurable Functions
Re-configure Window Configurable
Reader Output Format Configurable
Wiegand Plus Width Different choices
Keypad Output N/A Definable
Buzzer Control Reader & Controller control (Default) or Controller control only
LED/Back Lit Define different LED color response base on Green LED
Display No OLED
Clock Display No Yes
Typical Read Range > 5cm
Reader Standard Output Wiegand (RS232 & RS485 is an option)
Standard Keypad Output N/A Wiegand with 4 bits burst
Wiring Distance 150m (22 AWG with shielded cable)
Frequency & Standard 125KHz
Operating Specification
Operating Voltage 10 – 15VDC
Operating Current 150mA (max)
Operating Temperature -30°C – 70°C
Operating Humidity 10% – 90%
Case material PC + ABS
Standard Color Black
Exterior Dimension 143*46*25 mm
Weight 180g


Support on-site Reader Configuration Card to change certain parameters
