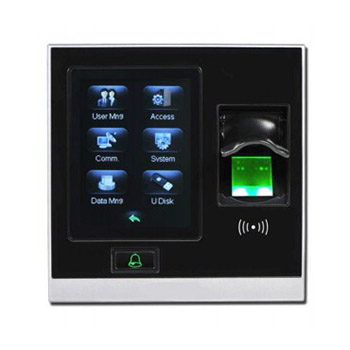

ESP 400 Fingerprint Access Control & Time Attendance

ESP 400 Fingerprint Access Control & Time Attendance

VIEW PDF

Functions

  • 2.8-inch touch screen, color display with graphical UI for easy operation
  • Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)
  • Prompt audio acceptance or rejection signals for valid or invalid fingers
  • Compact and lightweight, small size for 86mm (L) x 86mm (H) socket installation
  • TCP/IP or RS485 communication for various networking environments
  • Supports USB flash drive for offline data management
  • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
  • Up to 15 multi-verification methods to enhance security level
  • Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
  • Duress Alarm offers effective protection against duress by threats
  • Tamper proof switch and multiple alarm outputs
  • Multi-languages display available on request
Technical Specification
LCD 2.8 inch resistive touch screen
Fingerprint Sensor Optical Sensor (500DPI)
Algorithm Version Finger VX10.0
Communication TCP/IP, USB Host
Fingerprint Capacity 1,500
Card Capacity (Optional) 5,000 (EM/Mifare)
Records Capacity 80,000
Access Control Interface Electric lock, Door sensor, Alarm, Exit button, Door Bell
Wiegand Signal Wiegand input & output
Power Supply DC 12V/3A
Operating Temperature 0 ~ 45°C (32°~113°F)
Operating Humidity 20 ~ 80%
Dimension(L x W x H) 105 x 105 x 32mm

Description

Prompt audio acceptance or rejection signals for valid or invalid fingers
