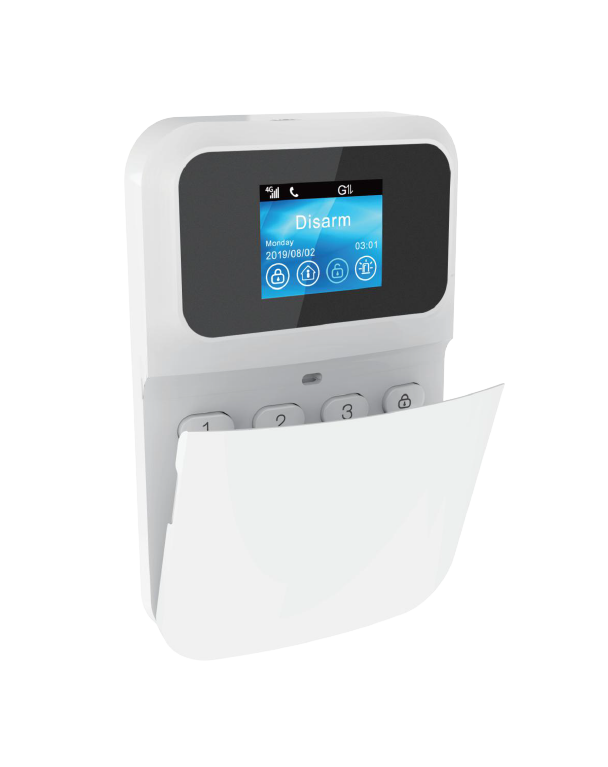

4G-Dialer-CO01 Alarm System



* LTE/SMS networks transmit alert, two network backup modes for selection.
* 4*4keyboard and TFTcolorLCD,Original host operating system, simple and clear.
* 3 wired zone+1 wired NC/NOrelay port+12 zone types are optional: disable, delay, burglar,
perimeter, fire, gas, duress, SOS, medical, doorbell, smart, outingreminder.
* Hierarchical password design,1 of programming password,1 ofuserpassword.
* Support 8 alarm numbers. Alarm phone type canbe setin Disable;LTE network dial;LTE network
SMS; LTE network SMS&Dial.
* Support IOS and Android APP software, user can operate and program alarm host via app software.
* Support arm/disarm, system,alarm information pushed in multi-language,alarm information pop-up
on the screen,alarmvoice and vibration.
* Zone name can be edited byusers, checkall states of thehostinrealtime.
* Fast intelligent networking capabilities, multiple mobile phones at the same time control the host,
and optional sharing of features to other users.
* Support 20suser-defined recording which can be replayed. Alarm host will play the recording to users
when voice alarming.
* Remote arm/disarming, programming and other operations Support 50 pieces of latest alarm records
and querying


Power Size Working Environment
DC 9-24V/1A 140mm*192mm*27.1mm
-10°C~ +50°C

Standard Kit: 1*HY-CO01
48 Pieces/Carton (46.5*42.5*37.5 cm)
