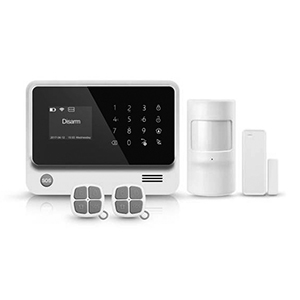

WIFI Alarm System

WIFI Alarm System



  • Support “ding dong “doorbell function;
  • Zone names can be revised by users;
  • Support 100pcs Wireless relay/Wireless Socket;
  • Backup battery can enable the wifi continue to work after external power cut
  • 10 seconds personal voice message record;
  • Can control the system by calling-in: arm, disarm, listening-in etc;
  • Colour Options: White & Black;
  • Wireless learning coding, compatible with 2262 or 1527 chip sensors;
  • Multi-Language: English, Russian, French, Spanish, Svenska, Turk and Dutch;
GSM Frequency850/900/1800/1900Mhz
Backup BatteryFor continue working 24 hours when power cut/off
BatteryLithium battery 3.7V 1000mAh
DisplayLCD indicator
Personal Message Record10s
Input VoltageDC12V
Standby Current<200mA
Alarm Current<300mA
Alarm Sound110dB
Wireless Frequency433Mhz
Support Wireless SensorsEV1527/300K, 2262/1.5-4.7M
Wireless Distance100m open
Wireless sensor 100pcsSupport Sensors Quantity
Work Temperature-10°C to 40°C
Operating Current150mA (max)
Features & Functions
Working WaysWiFi / GPRS / GSM
Defence Zones100 Wireless Zones
8 Wired Zones
100pcs wireless power socket or wireless relay
Alarm call and APP user No.6 groups of call phone number
6 groups of APP user
Remote control the systemArm
Control relay open and close (Option)
Basic FunctionsLCD indicator Arm/Disarm/Stay arm/Alarm/Signal

English voice operation instruction
Multi-Language menu display
Password protection function
0-90secs. delay alarm and arm setting

Stay intelligent arm
Operating the host by APP
Reset factory setting


Backup battery can enable the wifi continue to work after external power cut
