Description
Universal back plate allows the reader be installed on different size of gang box.

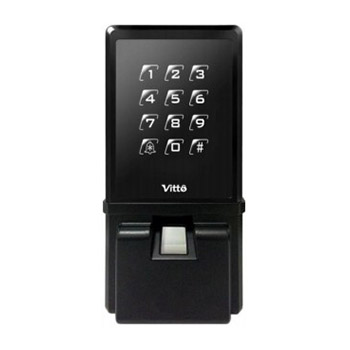

High Security Fingerprint Reader
High Security Fingerprint Reader
VIEW PDFDescription
- “Touch” number pad does not carry any moving parts, which implies more durable
- Metal back plate allows the reader install on metal surface and back-to-back without affecting the read range
- Universal back plate allows the reader be installed on different size of gang box
- All input and output signals are protected against static charges
- Reverse power protection
- All inputs are 12Vdc protected
| Network Version | Standalone Version | |
|---|---|---|
| Enrolment | Can use Configuration Card to change Fingerprint Scanner to Enrolment Device | Enable usage of a Function Card to perform offline enrolment |
| Finger Template Storage | Store in Fingerprint Scanner | Store in Mifare Card |
| Fingerprint Capacity | Support 2,000 users, maximum 4,000 templates | Based on the card capacity of the access control system |
| Finger Template Data Synchronization | Use software to upload and download via RS485 | No synchronization required |
| Access Mode | Card Only; Fingerprint Only; Fingerprint + Card; Fingerprint or Card | Card Only; Fingerprint + Card |
| Standard Fingerprint Reader | Keypad Fingerprint Reader | |
| Configurable Functions | ||
| Re-configure Window | 5 seconds (Default) or Half an hour after power up | |
| Reader Output Format | CSN/UID 32bits, 34bits, 56bits (backward/forward), file content reading for programmed ID | |
| Wiegand Pulse Width | Different choices to fit with different Controller’s requirements | |
| Keypad Output | N/A | Definable |
| Buzzer Control | Reader & Controller control (Default) or Controller control only | |
| LED/Back lit Control | Define different LED color response base on Green LED cable input | |
| Technical Specifications | ||
| Typical Read range | 3 – 5 cm | |
| Reader Standard Output | Wiegand (RS232 & RS485 optional) | |
| Standard Keypad output | N/A | Wiegand with 4 bits burst |
| Wiring Distance | 150m (22 AWG with shielded cable) | |
| Fingerprint Scanner | Optical | |
| Fingerprint Capacity | Network Version: 4,000 templates, each user can enrol 2 fingerprints Standalone Version: Based on the card capacity | |
| Template Size | 193 Bytes | |
| Fingerprint Parameter | Verification Time: 1 s/1000 fingerprints stored, FRR≤0.001%, FAR≤1% | |
| Access Mode | Network and Standalone Version: Card Only, Fingerprint + Card Network Version Only: Fingerprint or Card, Fingerprint Only Use | |
| Template Synchronization | Network Version: Software to upload and download via RS485 Standalone Version: Templates store inside card | |
| Operating Specification | ||
| Operating Voltage | 10 – 15VDC | |
| Operating Current | 250mA (max) | |
| Operating Temperature | 20℃-60℃ | |
| Exterior dimension | 186 L 85 W 22 H (RFID Reader) / 31.5 H (Fingerprint Scanner) mm | |
