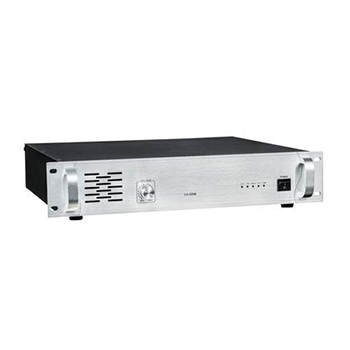

2U Power Amplifier

2U Power Amplifier

VIEW PDF

Features:

  • Input: RCA/XLR
  • Output: 100V/70V 4-16Ω
  • With 5 point LED indicator
  • Master Volume control
  • Cooling fan and heat sink for over-heat protection, Short-circuit/Over-load/Over heat protection
  • 2U rack mount design, aluminium material, fashion
  • appearance

Specification

Model CA-300W CA-400W CA-500W CA-650W CA-850W CA-1100W C-1500w
Rated Power 300W 400W 500W 650W 850W 1100 1500W
Dimension(mm) 300W-850W(2U): 485*430*90mm 1100W-1500W(3U): 485x480x132mm
Output Model 70V 100V 4-16Ω
Input Sensitivity 775mv/10KΩ
S/n Radio >90db
Tone Bass: 100Hz±10dB, Treble: 10KHz±10dB
Frequency Response 50Hz~~20KHz
Harmonic Distortion <0.1% at 1KHz, 1/3 rated power
Power AC 220V~~240V/50Hz~60Hz
Dimension(mm) 300W-850W(2U): 485*430*90mm 1100W-1500W(3U): 485x480x132mm

Description

Cooling fan and heat sink for over-heat protection, Short-circuit/Over-load/Over heat protection
