KX-TES824

KX-TES824

VIEW PDF

Features

Panasonic offers you unprecedented flexibility and simple
expansion with optional cards.
By adding optional cards, you can expand the system
from 3 COs / 8 extensions to 8 COs / 24 extensions to
meet your changing needs.
Neither additional programming nor costly rewiring is
required.

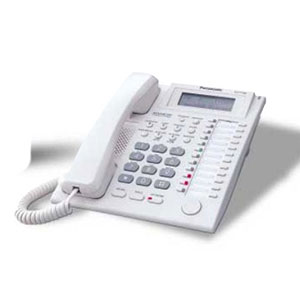

Feature – ModelKX-T7735KX-T7730KX-T7720KX-T7750
Alphanumeric Display (Lines x Characters)3 x 161 x 16
Programmable Keys with Dual Colour LED12121212
Programmable Feature (PF) Keys12
Feature Access Keys for LCDNavigator KeyNavigator Key
Hands-Free SpeechMonitor
SP-Phone (Monitor) Volume ControlNavigator KeyNavigator KeyUp/Down KeyUp/Down Key
Handset Volume ControlNavigator KeyNavigator KeyUp/Down KeyUp/Down Key
Ringer Volume ControlSlide Switch
(Off/Low/High)
Slide Switch
(Off/Low/High)
Slide Switch
(Off/Low/High)
Slide Switch
(Off/Low/High)
Contrast ControlNavigator KeyNavigator Key
Incoming Call / Message Lamp
Auto Answer / Mute
Voice Call
Headset Compatible*
Specifications – ITEMKX-TES824KX-TEM824
Maximum Capacity8COs
24 Extensions
(16:Hybrid 8:SLT)
8COs
24 Extensions
(16:Hybrid 8:SLT)
Intercom Paths44
Dialling MethodExternal: Tone (DTMF) / Pulse (10 pps, 20 pps)
Internal: Tone (DTMF) / Pulse (10 pps, 20 pps)
Dialling ConversionPulse to tone
ConnectionsCO Line: Modular Jack (2-wire)
Intercom: Modular Jack (4-wire)
Paging: Conductor Jack
External Music: Conductor Jack
SMDR: RS-232C I / F Port (9 pin D-SUB)
Programming: RS-232C / USB / Remote modem
SMDRDetail Recording: Date, Time, Extension Number, CO
Line Number, Dialled Number, Call Duration, Account
Code, Caller ID*3
Polarity Reverse Detection*2YesYes
Voice Mail Ports2 ports (APT or DTMF)4 ports (APT or DTMF)
DTMF Receivers24
DTMF Generator11
CO – CO Transfer Path22
Power Failure Transfer Ports12
Direct Connection to External BatteryYesYes
Power SourceAC 110 – 240 V, 50/60 Hz
Power Consumption45W58W
Dimensions (W x H x D)368 mm x 284 mm x 102 mm368 mm x 284 mm x 102 mm
Weight (when fully expanded)Approx. 3.5 Kg

Description

Panasonic offers you unprecedented flexibility and simple
expansion with optional cards
